This 1m OM1 duplex lead uses 62.5/125 multimode fibre, found in older installations and suited to Gigabit links of a few hundred metres.

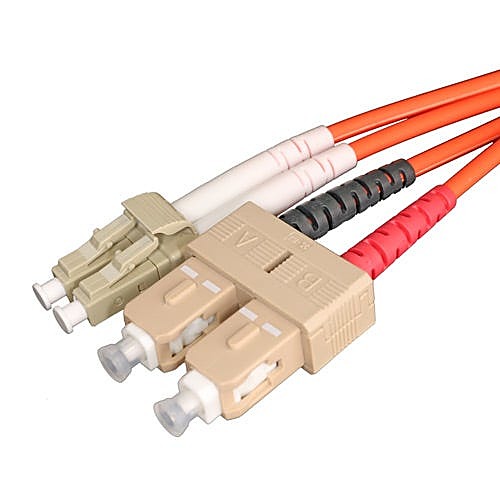

One end is LC (small push-and-latch, used on SFP modules and dense panels) and the other is SC (square push-pull, common on panels and media converters), so it bridges equipment with different connector types. Duplex means two fibres in one lead, one for each direction of traffic.
It is for multimode optics such as SR and SX modules, and should match the fibre grade of the rest of the link. The jacket is LSZH for indoor use in offices and data centres. Jacket colour is orange, the usual colour for OM1.
At 1m it is a short patching length for use inside one rack.
Specification
- Fibre grade: OM1
- Fibre type: Multimode 62.5/125
- Connectors: LC to SC, duplex
- Length: 1m
- Jacket colour: Orange
- Sheath: LSZH
