Rated to 500MHz, this 0.75m CAT6A lead carries 10GBASE-T across a full 100 metre channel. That makes it a sensible choice for 10G switch uplinks, NAS boxes and multi-gig Wi-Fi access points.

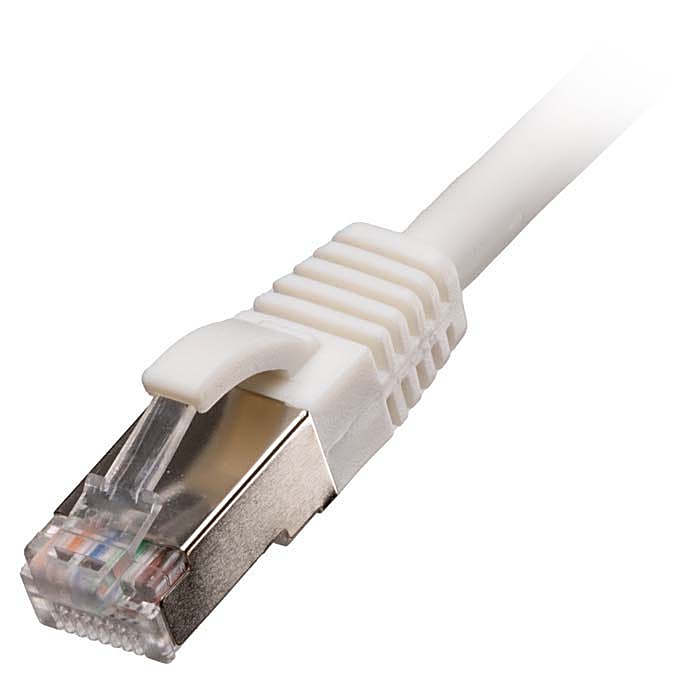

The cable uses a braided outer screen plus foil around every pair (S/FTP), the heaviest screening used on copper patch leads. Screened leads work best when the switch ports and patch panel are screened as well. An LSZH (low smoke, zero halogen) jacket is used, which is what most building specifications now call for indoors. Using 26 AWG copper makes it a little thinner and easier to dress neatly than heavier-gauge leads. The RJ45 latch is protected by snagless boots, which stop it hooking on other cables or breaking.
Typical uses are floor box to laptop dock, router to smart TV, or patching between two adjacent cabinets. Choosing white leads for one job (cameras, phones or uplinks, say) makes faults quicker to trace later.
Specification
- Cable category: CAT6A
- Length: 0.75m
- Colour: White
- Screening: S/FTP
- Conductor size: 26 AWG
- Sheath: LSZH
- Boots: Snagless
- Plugs: RJ45 to RJ45
- Bandwidth: 500MHz
