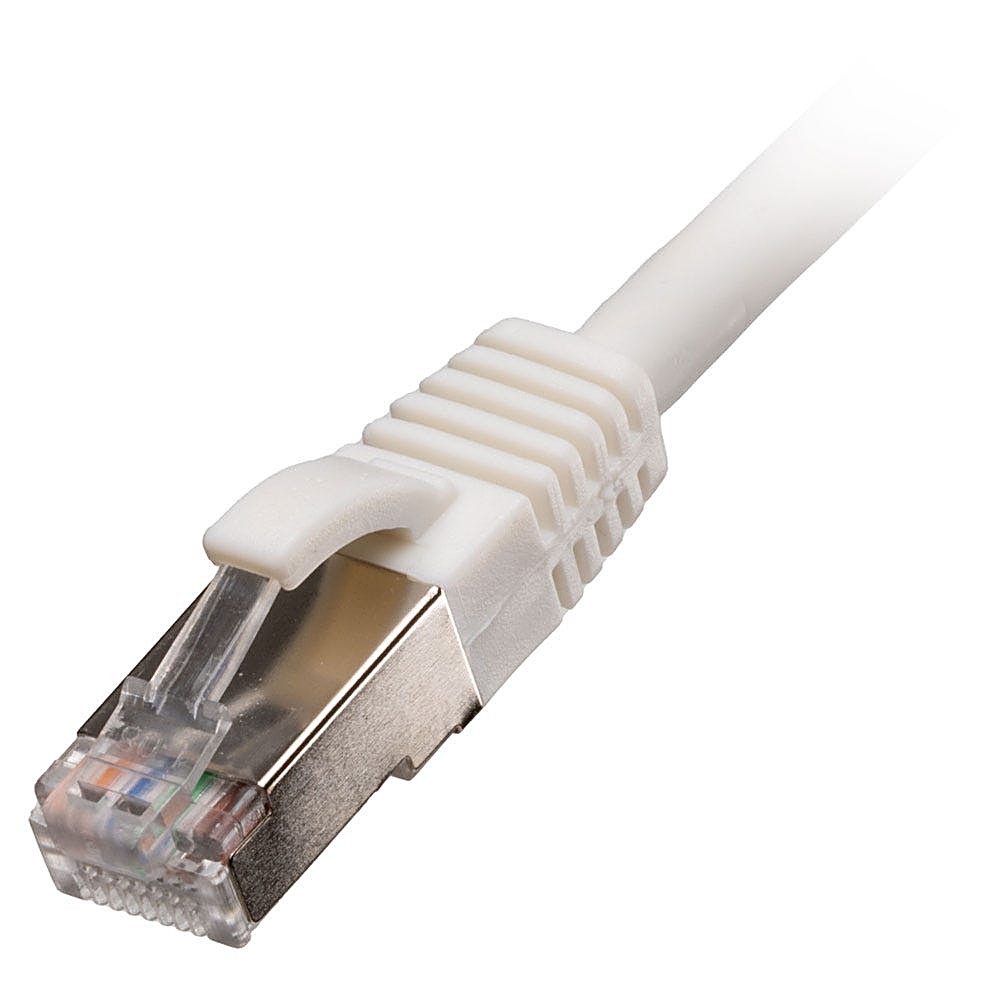

This 1.25m CAT6A patch lead from Nimbus is rated to 500MHz and handles 10GBASE-T across a full 100 metre channel. It is the cable to choose for 10 Gigabit server, storage and uplink connections.
The cable uses a braided outer screen plus foil around every pair (S/FTP), the heaviest screening used on copper patch leads. Screened leads work best when the switch ports and patch panel are screened as well. The sheath is LSZH, meaning it produces little smoke and no halogen gases in a fire; many commercial and public buildings ask for it. Using 26 AWG copper makes it a little thinner and easier to dress neatly than heavier-gauge leads. Snagless boots shield the RJ45 clip, so it will not catch when the lead is pulled through a bundle or snap off in use.
A good length for the desk: wall socket to PC, router to games console, or a short hop between neighbouring racks. White is one of several colours in the range, so you can colour-code by department, VLAN or device type.
Specification
- Cable category: CAT6A
- Length: 1.25m
- Colour: White
- Screening: S/FTP
- Conductor size: 26 AWG
- Sheath: LSZH
- Boots: Snagless
- Plugs: RJ45 to RJ45
- Bandwidth: 500MHz
