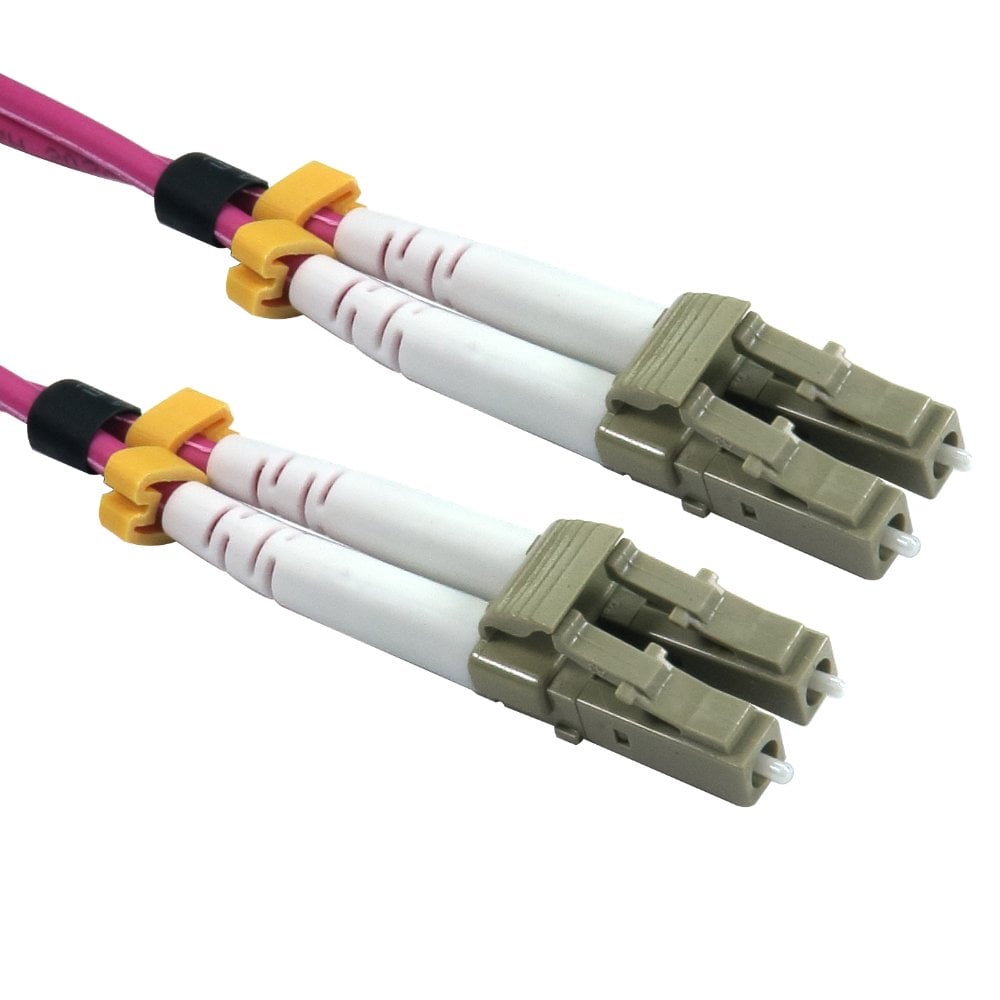

OM4 is high-bandwidth 50/125 multimode fibre that runs 10 Gigabit up to 400 metres and 40/100 Gigabit up to 150 metres. This 0.5m duplex patch lead joins LC ports to LC ports.
Both ends are LC (small push-and-latch, used on SFP modules and dense panels). Duplex means two fibres in one lead, one for each direction of traffic.
Match it to the grade already in your panels and to multimode (SR or SX) transceivers. The ferrules have a UPC polish. Each fibre is in a 3.0mm jacket. The jacket is LSZH for indoor use in offices and data centres. Jacket colour is erika violet, the usual colour for OM4.
At 0.5m it is a short patching length for use inside one rack.
Specification
- Fibre grade: OM4
- Fibre type: Multimode 50/125
- Connectors: LC to LC, duplex
- Length: 0.5m
- Jacket colour: Erika Violet
- Polish: UPC
- Jacket diameter: 3.0mm
- Sheath: LSZH
