This 0.5m OM4 duplex lead uses high-bandwidth 50/125 multimode fibre that runs 10 Gigabit up to 400 metres and 40/100 Gigabit up to 150 metres.

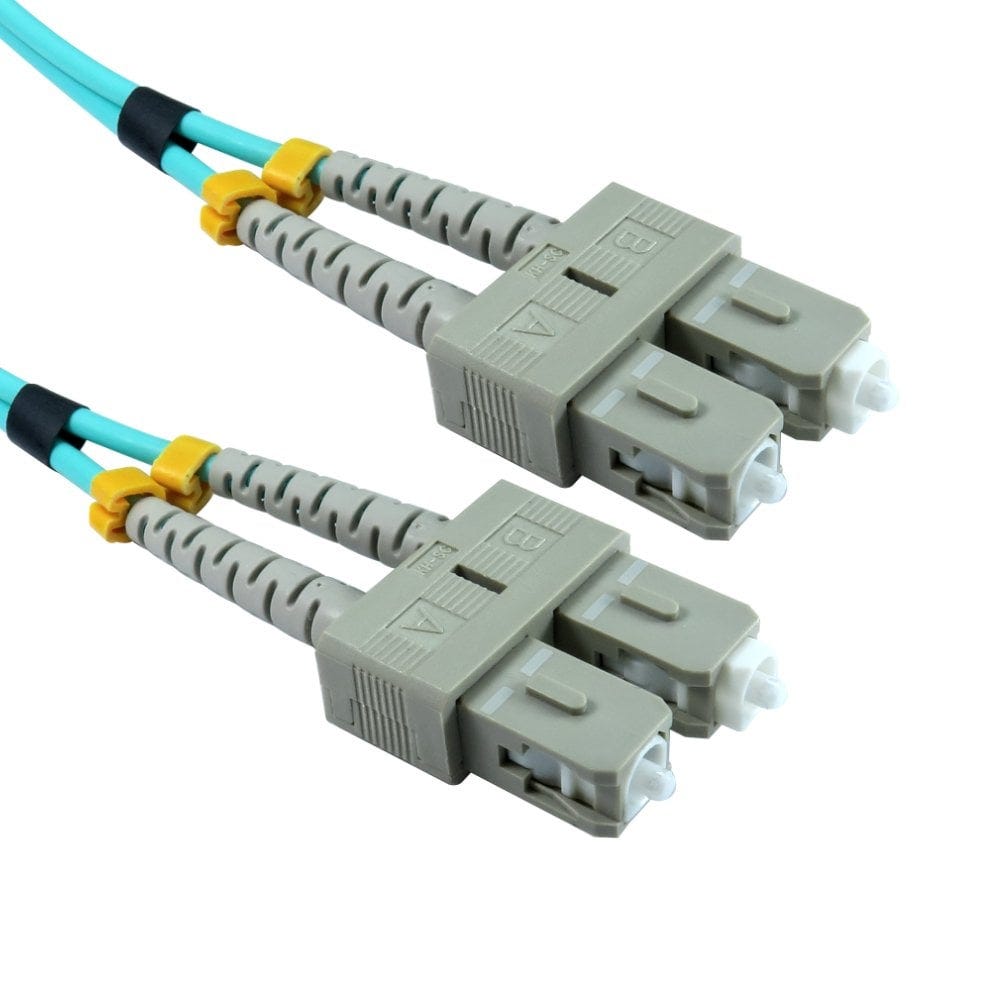

Both ends are SC (square push-pull, common on panels and media converters). Being duplex, it has two fibres (transmit and receive) joined side by side.
It is for multimode optics such as SR and SX modules, and should match the fibre grade of the rest of the link. The ferrules have a UPC polish. Each fibre is in a 3.0mm jacket. The jacket is LSZH for indoor use in offices and data centres.
At 0.5m it is a short patching length for use inside one rack.
Specification
- Fibre grade: OM4
- Fibre type: Multimode 50/125
- Connectors: SC to SC, duplex
- Length: 0.5m
- Polish: UPC
- Jacket diameter: 3.0mm
- Sheath: LSZH
