Built on high-bandwidth 50/125 multimode fibre that runs 10 Gigabit up to 400 metres and 40/100 Gigabit up to 150 metres, this 10m ST to SC duplex lead comes ready to patch.

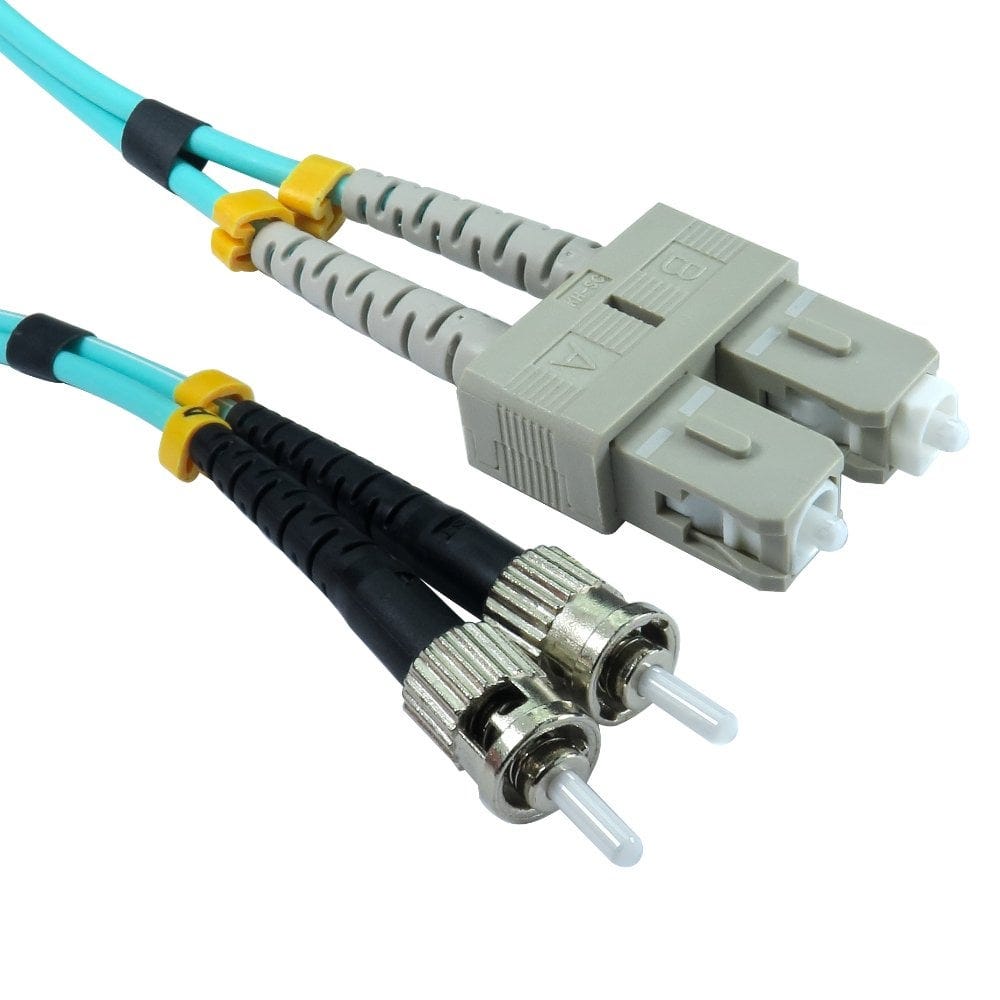

One end is ST (round bayonet twist-lock, found on older installs) and the other is SC (square push-pull, common on panels and media converters), so it bridges equipment with different connector types. Duplex means two fibres in one lead, one for each direction of traffic.
Match it to the grade already in your panels and to multimode (SR or SX) transceivers. The ferrules have a UPC polish. Each fibre is in a 3.0mm jacket. The jacket is LSZH for indoor use in offices and data centres. Jacket colour is aqua, the usual colour for OM4.
At 10m it is suited to links between racks or across a comms room.
Specification
- Fibre grade: OM4
- Fibre type: Multimode 50/125
- Connectors: ST to SC, duplex
- Length: 10m
- Jacket colour: Aqua
- Polish: UPC
- Jacket diameter: 3.0mm
- Sheath: LSZH
