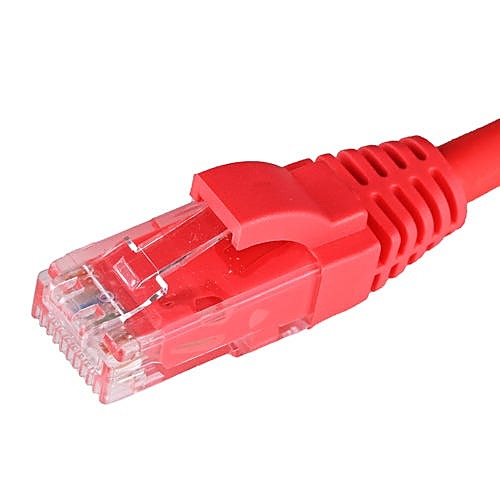

Rated to 100MHz, this 0.5m CAT5e lead carries Gigabit Ethernet at up to 100 metres. That is plenty for broadband routers, PCs, printers, set-top boxes and most office equipment.
The cable uses unscreened twisted pairs (U/UTP), which is all most homes and offices need. The sheath is LSZH, meaning it produces little smoke and no halogen gases in a fire; many commercial and public buildings ask for it. Using 26 AWG copper makes it a little thinner and easier to dress neatly than heavier-gauge leads. Snagless boots shield the RJ45 clip, so it will not catch when the lead is pulled through a bundle or snap off in use.
It is sized for in-rack patching between a panel and the switch directly above or below it. Choosing red leads for one job (cameras, phones or uplinks, say) makes faults quicker to trace later.
Specification
- Cable category: CAT5e
- Length: 0.5m
- Colour: Red
- Screening: U/UTP
- Conductor size: 26 AWG
- Sheath: LSZH
- Boots: Snagless
- Plugs: RJ45 to RJ45
- Bandwidth: 100MHz
