A 10m CAT6A Ethernet patch lead rated to 500MHz, good for 10GBASE-T across a full 100 metre channel. That makes it a sensible choice for 10G switch uplinks, NAS boxes and multi-gig Wi-Fi access points.

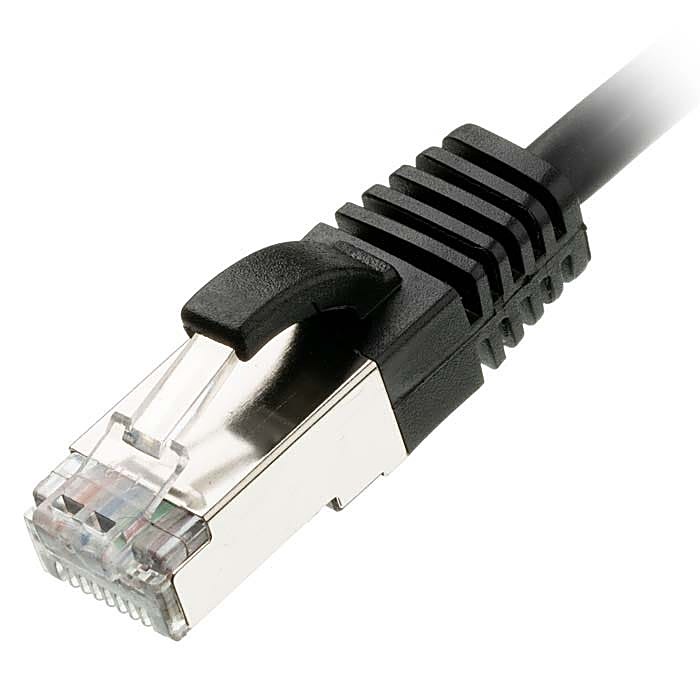

The cable uses a separate foil screen on each pair (U/FTP), which keeps crosstalk between the pairs very low. Screened leads work best when the switch ports and patch panel are screened as well. An LSZH (low smoke, zero halogen) jacket is used, which is what most building specifications now call for indoors. At 30 AWG the cable is much thinner than a standard lead, freeing up space and airflow in crowded cabinets. Slim leads are designed for patching, so keep them to the shorter lengths used inside cabinets and at desks. Snagless boots shield the RJ45 clip, so it will not catch when the lead is pulled through a bundle or snap off in use.
It covers the distance to an upstairs room, a summer house or a ceiling-mounted access point. In a crowded patch panel, a black lead stands out at a glance.
Specification
- Cable category: CAT6A
- Length: 10m
- Colour: Black
- Screening: U/FTP
- Conductor size: 30 AWG
- Sheath: LSZH
- Boots: Snagless
- Plugs: RJ45 to RJ45
- Bandwidth: 500MHz
