Rated to 250MHz, this 4m CAT6 lead carries Gigabit Ethernet at up to 100 metres, with 10GBASE-T possible on shorter links of around 55 metres. It is the everyday choice for offices, homes and small comms rooms.
The cable uses unscreened twisted pairs (U/UTP), which is all most homes and offices need. A flexible PVC sheath keeps it easy to handle and route. Its 24 AWG copper cores are thicker than the 26 AWG found in many patch leads, which helps with longer runs and powered devices.
It supports Power over Ethernet up to IEEE 802.3bt (PoE++), so one cable powers and connects IP cameras, wireless access points and desk phones.
This length crosses a room or an office bay, for example from a router on a shelf to a desk on the far wall. Choosing red leads for one job (cameras, phones or uplinks, say) makes faults quicker to trace later.
Specification
- Cable category: CAT6
- Length: 4m
- Colour: Red
- Screening: U/UTP
- Conductor size: 24 AWG
- Sheath: PVC

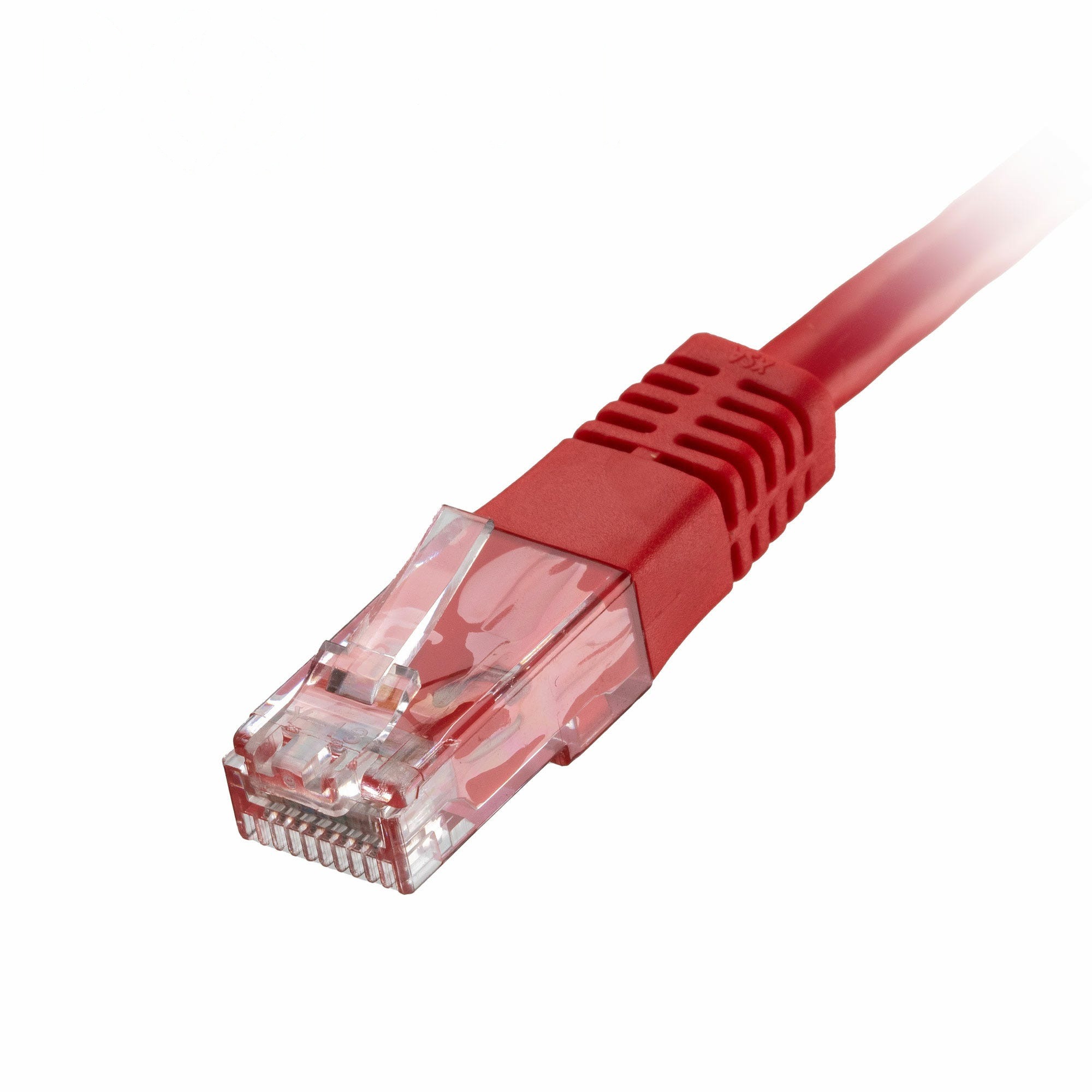

- Plugs: RJ45 to RJ45
- Power over Ethernet: Up to 802.3bt (PoE++)
- Bandwidth: 250MHz
